R2D2 Parts

PLEASE NOTE:  All parts are Builders Club approved and have been for some time now after going through the process of submitting pictures and documentation, proving I made all the parts myself and to the correct specification.

 All parts I make are made to the specified 1:1 dimensions as laid down for all builders in the CS:L version, but since starting to build my R6, I found many of the parts were chunkier than they needed to be with lots of excess resin that served no purpose. So I set about streamlining the parts to shave off as much weight as possible without affecting the cosmetic side or strength of them.

All parts are now made from a brand new eco friendly industrial grade polyurethane resin, which means they are not only lighter, but stronger and more durable too.



27 product(s) found for "R2D2 Parts"
R2 Ankle Cylinder Holders
These are my new injection moulded ankle cylinder holders, which are made from a HIPS nylon hybrid plastic, which is far stronger and more durable than resin, allowing for a much thinner and skeletal design, but at the same time being HIPS based means it sticks super strong to the ankle cylinder, so...
£7.00

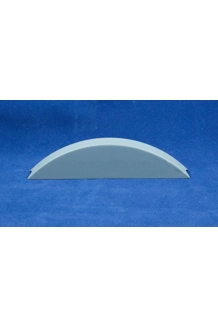

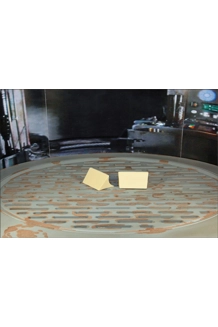

R2 Ankle Cylinder Wedges
This is for a pair of Ankle cylinder wedges, enough to do either the outer legs or inner one, and if you want to do all three legs then you will need two packs of these. This is one of the smaller, but still chunky parts as I classed it, in that it was just a chunk of resin that didn't need to be and...
£2.50

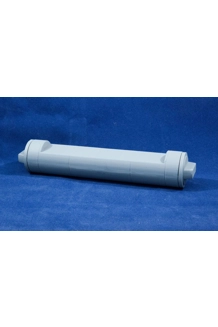

R2 Ankle Cylinders
I am trying to move away from resin in favour of injection moulding, but due to the shot load of my injection moulding machine the parts have to broken down into kit form, which does require you to assemble them first, (normal model glue like Humbrol Liquid Poly works fine and Humbrol model filler for...
£17.50
R2 Ankle Detail Pieces
These are the ankle detail parts which fit on the front and back of the ankle and come in a set of four, enough to do one droid. This part I lighten by removing most of the unseen bulk at the back, leaving just a framework and two fixing points. All parts come in white resin ready for you to paint.
£12.50
R2 Battery Harness
This is for a set of four Battery Harnesses enough to do one droid. There wasn't any weight saving to be had on this part, but instead of casting it in fiddly little bits like I have seen, I set about making and casting it as one, so it just fits straight on. All parts come in beige resin ready for you...
£12.50

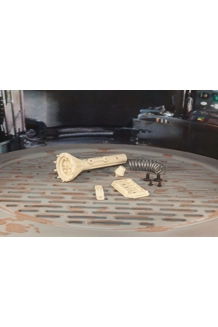

R2 Charging Arm
This is what I call one of my made parts, in that there was no official plans for this at the time I made it, just spotted it in the DK star wars book and thought it would look quite good, so set about scaling and making it. I have now remade it, so the main head part is injection moulded which means...
£15.00

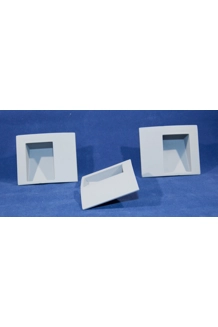

R2 Coin Returns
These are my new injection moulded coin returns, they are made in a nylon composite thermoplastic and ready to paint. This is for a set of three coin returns enough to do one droid. These parts come in black nylon composite plastic and are ready to paint.
£15.00

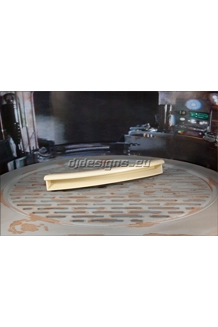

R2 Coin Slot Strip
This is the strip of coin slots that go on the front, and due to the design there isn't a whole lot that can be removed, but I took away small amounts between the slots which is not seen and also opened the coin slots up so they now go right through, and to aid fixing added six small holes to help you...
£5.00
R2 Front Logic Surrounds
These are my new injection moulded front logic surrounds, which are made from a HIPS nylon hybrid plastic, which is far stronger and more durable than resin, but at the same time being HIPS based means it sticks really well to a styrene dome with just something like liquid poly model kit glue, or if...
£3.00
R2 Front Vents
This is for a PAIR of front vents, one for the top, and one for the bottom, as they are both different. This is another one of those chunky parts that had a lot of excess resin at the back which didn't need to be and was only there to make open casting easier, so I removed the access bulk from the back...
£16.00
R2 Halfmoon Detail plates
This is for a pair of Halfmoon detail plates, enough to do either the outer legs or inner one, and if you want to do both you will need two packs of these. This part I lighten by removing most of the unseen bulk at the back, leaving just a framework and two fixing points. All parts come in white resin...
£15.00
R2 Holo Projector Set
This is for a set of three holo projectors. One movable and two fixed both at different angles and also includes vac formed clear lenses. While this looks the same as the old ones it's been lightened and modified out of sight so to speak. For starters the unseen resin from behind has been removed, allowing...
£17.50

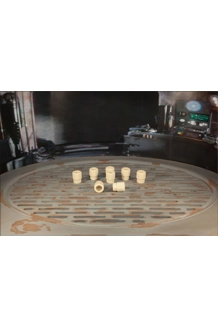

R2 Knurled Hose Fittings
All said and done on this part there isn't really anything that can be removed excess resin wise, so there just as standard. This is for 8 hose fittings, enough to do one droid, and come in white resin ready for you to paint.
£3.75
R2 Large Data Port
This is for a single Large Date Port, enough to do one droid, just as per the specs. All parts come in white resin ready for you to paint.
£11.25

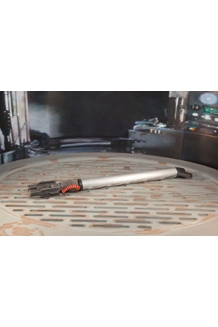

R2 Leg Struts
This is for a pair of Leg Struts, enough to do one droid. This part is now cast in two pieces, the main body and the tubes, which are now aluminium with resin inserts oppose to solid resin. Parts come in white resin and bare aluminium ready for you to paint.
£16.00
R2 Motivator
This is my new version motivator, which with a combination of my chums 4k tv and my blue ray disk the detail is clearer, (not perfect, but much better) so I set about updating my old version to more like the clearer image. First what I thought were nuts or screws in the top turned out to be little spike...
£12.50

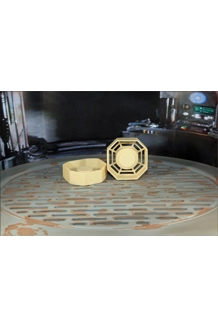

R2 Octagon Ports
This part is made to the specified 1:1 dimensions, however I based the slat spacing and centre knob size more on the original pictures of ILM's uber droid as it was called, as personally I thought the slighter bigger slats looked better, but all said and done most people never spot the difference. These...
£10.00
R2 Power Couplings
This is for a PAIR of Power Couplings enough to do one droid, as in one for the front and one the back. This is another one of those chunky parts that had a lot of excess resin at the back which didn't need to be and was only there to make open casting easier, so I removed the access bulk from the back...
£16.00

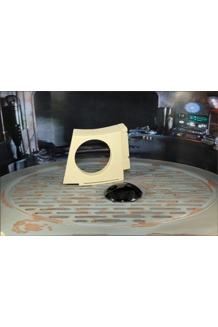

R2 Radar Eye
This part I lighten by removing most of the unseen bulk at the back, leaving just a framework and four fixing points. This is for one radar eye and it comes complete with a black eye lens. Main part come in white resin ready for you to paint.
£15.00
R2 Rear Logic Surround
This is for one rear logic surround, enough to do one droid. This part there isn't a whole lot that can be removed, but I shaved a few grams off while adding a fixing hole at either end. All parts come in white resin ready for you to paint.
£3.75
R2 Restraining Bolt C3-PO
This part is the restraining bolt as seen on C3P0 in Star wars, (just outside the Jawa sandcrawler) and with more detail now visible in blu ray, it made the making of this part much easier. Its hollow cast and comes fitted with a high power magnet to allow you to place a piece of metal or another magnet...
£5.00
R2 Restraining Bolt R2-D2
I made this part from a picture on the extras disc of the blu ray dvd set where there is a really good close up of this attached to R2, and clearly show all the finer details previously people were unsure about. Its hollow cast and comes fitted with a high power magnet to allow you to place a piece of...
£5.00
R2 Shoulder buttons
This is for a set of four shoulder buttons, enough to do one droid and are just as the plans All parts come in white resin ready for you to paint.
£2.50
R2 Shoulder Hubs
This is for a pair of shoulder hubs, enough to do one droid. This part I lighten by removing some of the unseen bulk at the back, while leaving the option to either glue in place, or use the three magnet twist and hold system to allow access to the shoulder mountings. All parts come in white resin ready...
£15.00

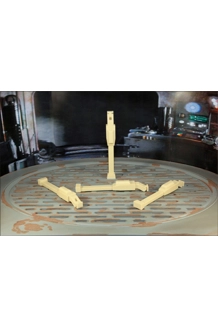

R2 Shoulder Hydraulics
This is for a set of two shoulder Hydraulics enough to do one droid. This part there wasn't anything to be removed weight wise, but as the old mould had worn out, a new mould was made to use my new resin so the part is now stronger and more durable. All parts come in white resin ready for you to pai...
£5.00
R2 Shoulder Stabiliser
On this part there isn't anything to remove weight wise, so they come just as per the official plans. This is for a set of four shoulder stabiliser's, enough to do one droid. They come in white resin ready for you to paint.
£6.25
R2 Utility Arms
While these look the same from the front, I have been listening to other builders and their gripes if you like and tried my best to sort these out. First of all there is the end snapping off near the narrow part when at shows etc, where kiddies pull on them, (can't be helped,) so to that end these were...
£17.50
